FYRFLY FAH10-01

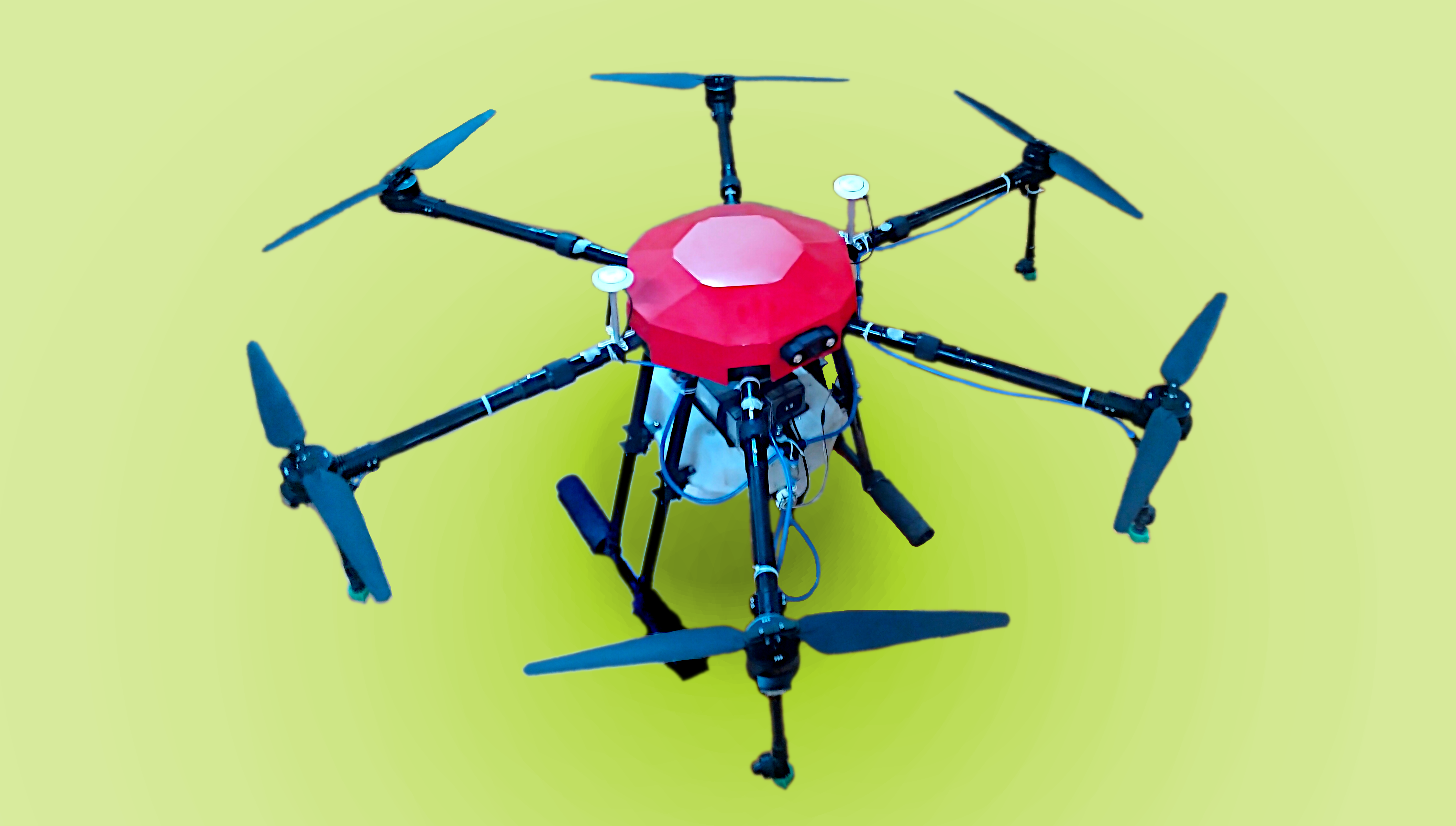

FyrFly Agricultural Drone : FAH10-01
| Description | Value | |
| Name of Model | FyrFly FAH10-01 | |
| Purpose | Agricultural Solution Spraying | |
| Type of UAV | Multirotor (Hexacopter) | |
| Weight of drone (without payload) | 14.5 kg | |
| Weight of drone (with payload) | 24.5 kg (max) | |
| Maximum Take-off weight | 30 kg | |
| Tank Volume | 11 L | |
| No. of Nozzles | 4 | |
| Overall dimensions | ||
| Height | 750 mm (max) | |
| Horizontal span (Motor Center – Motor Center) | 1460 mm | |
| Horizontal span (Propeller Tip – Propeller Tip) | 2020 mm | |
| Horizontal span (arms folded condition) | 850 mm | |
| Powertrain Details | ||
| Type of Battery | LiPo | |
| Battery Capacity | 16000 mAh | |
| Battery Nominal Voltage | 12S (44.4V) | |
| Max. Input Current (Cont.) per Motor | 80 A | |
| Max. Peak Current (10s) per Motor | 100 A | |
| Max. Power (Cont.) per Motor | 3.57 kW | |
| Max. Peak Power (10s) per Motor | 4.44 kW | |
| Flight Time (w/ payload) | 10 min | |
| Flight Time (w/o payload) | 20 min | |
| Area covered in one battery discharge cycle | 1 acre | |
| Solution required per unit area of land | 10L/acre | |
| Flow rate | Variable flow rate possible | |
| Maximum Flow Rate | 5L/min | |
